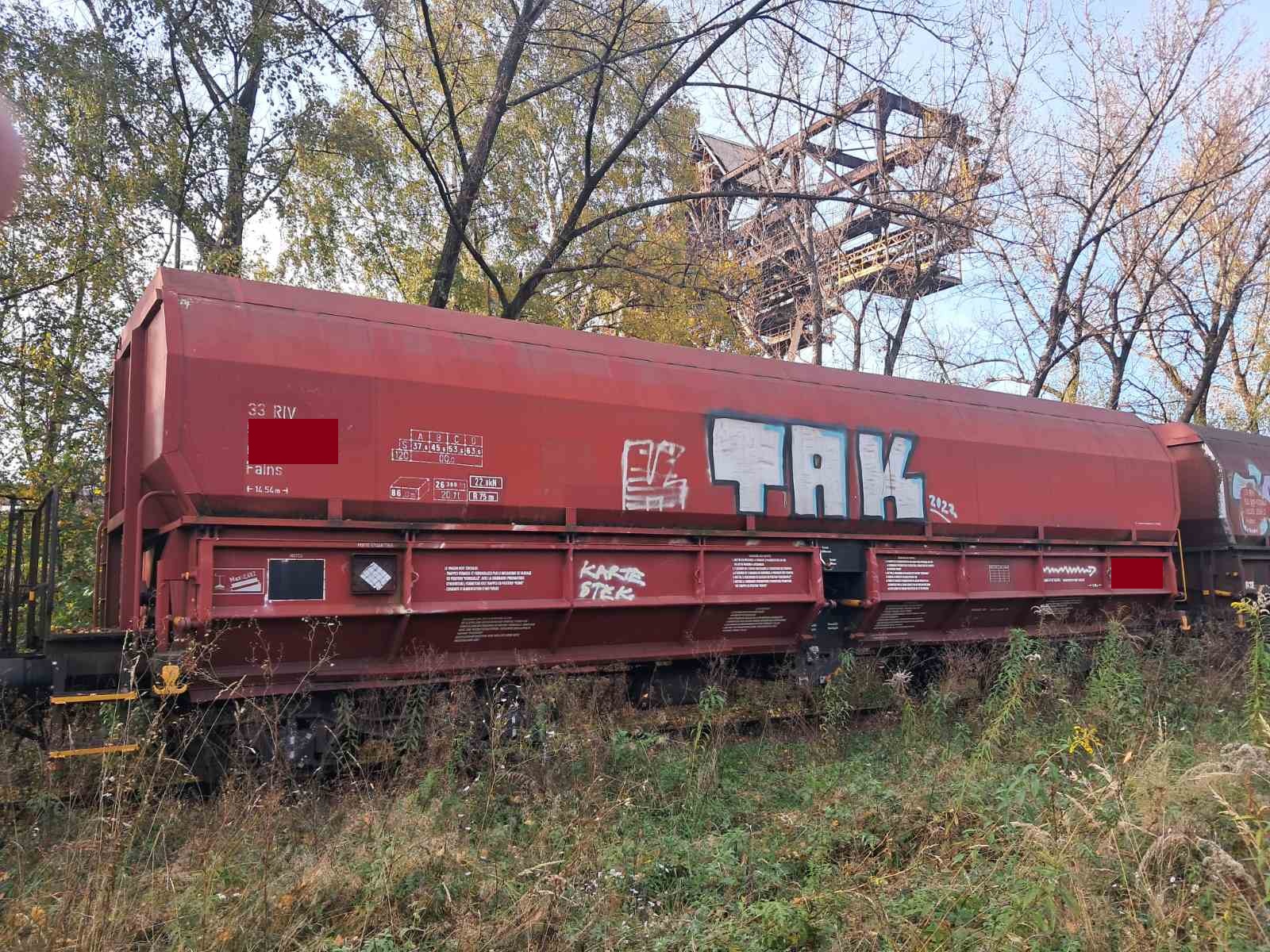

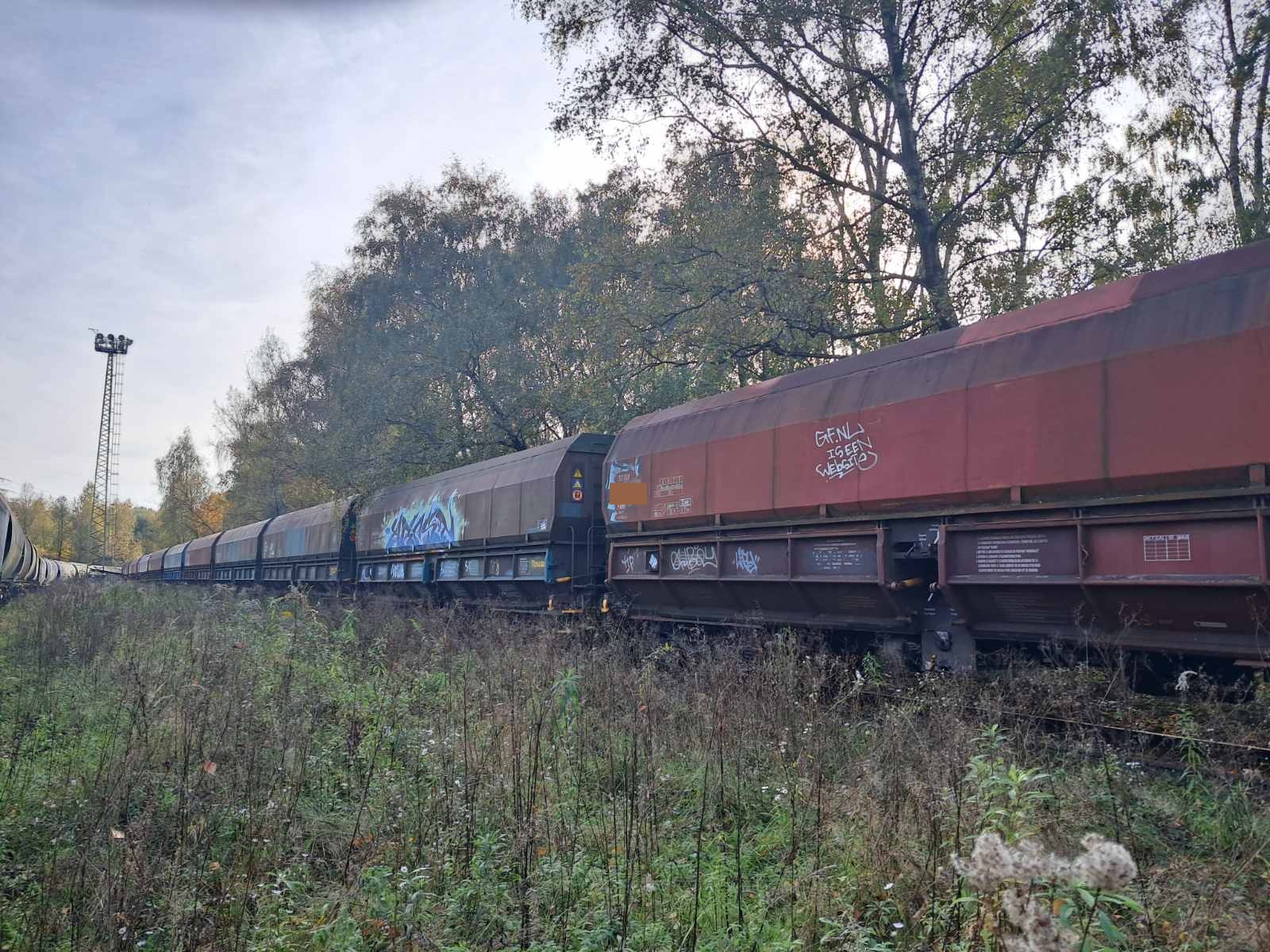

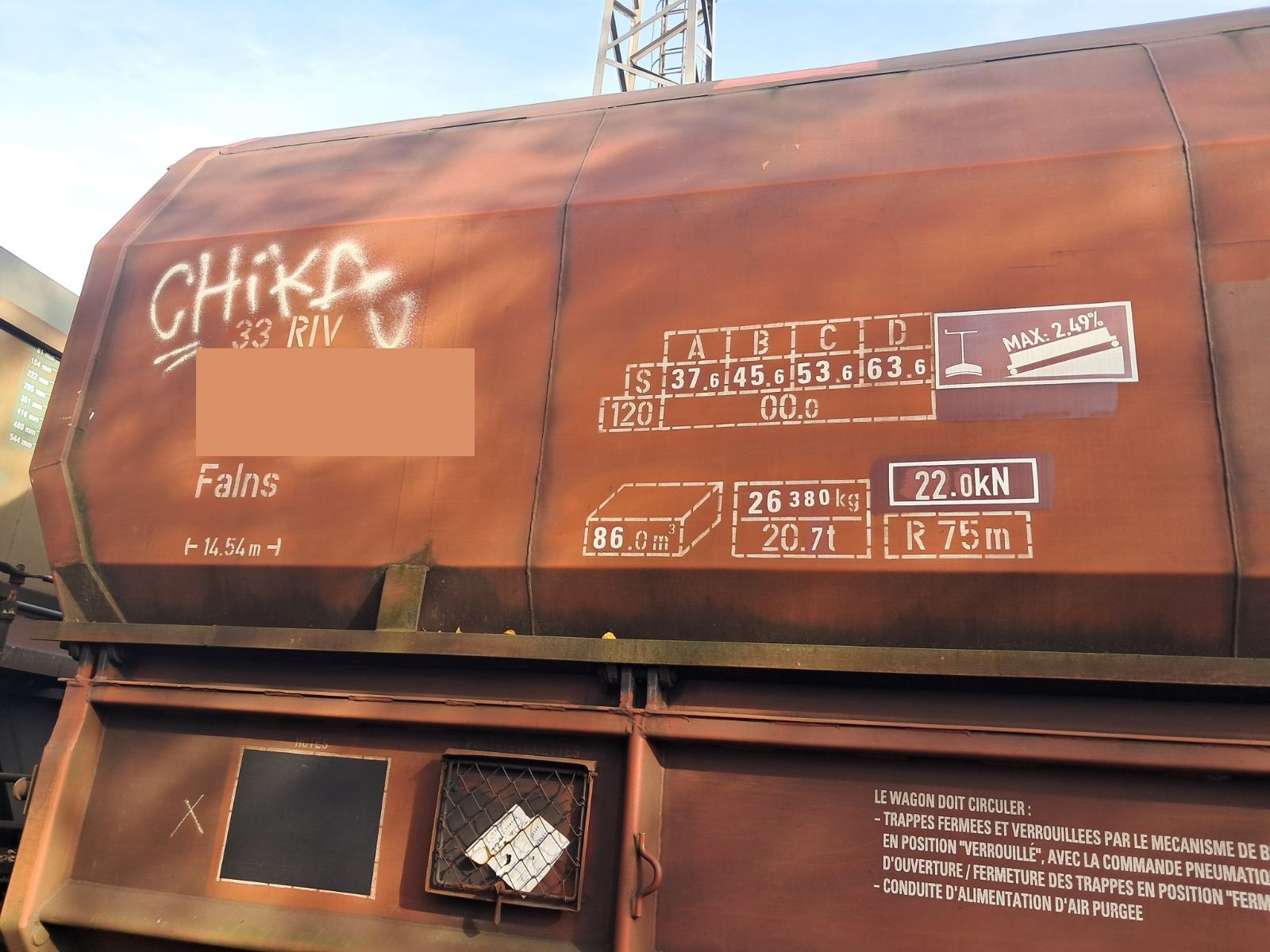

53 x Falns hopper cars for gravel, coal and others for sale

We are pleased to submit an offer for 53 Falns hopper wagons. Ready for immediate use, with remaining service life.

The Falns wagons offered comply with the relevant UIC standards and have proven themselves in European rail freight transport as robust, reliable, and cost-effective hopper wagons for transporting coal, ore, ballast, limestone, aggregates, and other bulk commodities.

• • Wagon type: Falns
  • Quantity: 53 wagons
  • Track gauge: 1,435 mm
  • Loading gauge: UIC 505-1, Figure 6
•
  Specs:
• Y25 Lsd1 bogies
• Draft and buffing gear with screw coupling and buffers in accordance with UIC regulations
• Type KE-GP compressed-air brake • Handbrake operated from the operating platform
• Pneumatic system for automatic opening and closing of the discharge flaps • Underframe prepared for the installation of an automatic coupler (UIC/OSShD)
• Two bulk material hoppers with a fixed slope angle of at least 50°
• Four pneumatically operated discharge flaps (two per side of the wagon)
• Access platform, ladders, steps, grab handles, and all permanently mounted equipment in accordance with applicable UIC regulations

• Length over buffers 14,540 mm
• Underframe length 13,300 mm
• Bogie pivot spacing 9,000 mm
• Wagon width 3,080 mm
• Length of discharge flap 5,700 mm
• Width of discharge flap 1,100 mm
• Usable length of loading opening approx. 12,800 mm
• Usable width of loading opening approx. 1,986 mm
• Wagon height above top of rail (empty) max. 4,002 mm
• Bogie wheelbase 1,800 mm
• Wheel diameter (new) Ø 920 mm
• Coupler height 1,040 (+5/-10) mm
• Buffer height 1,060 (+5/-10) mm

Feature Value

• Usable volume approx. 86 m³
• Permissible payload approx. 63.5 t
• Tare weight approx. 26.5 t
• Permissible axle load 22.5 t
• Bogie Y25 Lsd1
• Brake system KE-GP
• Maximum speed (loaded) 100 km/h
• Maximum speed (empty) 120 km/h
• Minimum radius on main track 150 m
• Minimum radius on shunting track 75 m
• Hopper slope at least 50°
• Number of discharge hatches 4
• Operating pressure of discharge system 8–10 bar
• Year of manufacture and major overhaul
• Years of manufacture: 2006–2007
• Next major overhaul (REV): 2027–2028
