14 x Ks flat car 4 axle for sale

For sale are very good Ks flat cars  UIV

Particularly suitable for robust goods such as pipes, flat and bar steel, logs, sawn timber, timber bundles, rails, containers, crates, and vehicles.

The wagons have no parking brake and are therefore ideally suited for rail construction trains!   Cars in good conditions.

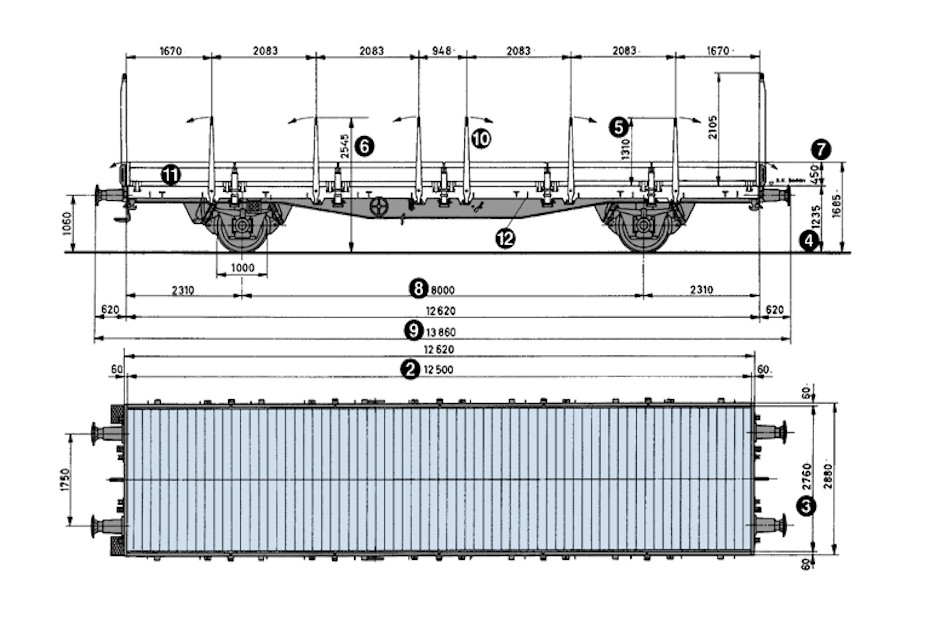

Data:

• Minimum tare mass 10 t
• (1) Maximum load weight 27.5–28.5 t
• (2) Loading length 12,464–12,500 mm
• (3) Loading width 2,760–2,770 mm Loading area 35 m² Average tare weight 12.0–12.5 t
• (4) Loading surface height above top of rail 1,235–1,241 mm
• (5) Stanchion height (from loading surface) 1,304–1,310 mm
• (6) Stanchion height (from top of rail) 2,545 mm
• (7) Height of end and side boards 450–454 mm
• (8) Axle spacing 8,000 mm
• Length over buffers 13,860 mm
• Minimum negotiable track radius 35 m
• Maximum wagon floor load 10 kg/cm²
• Permissible vehicle wheel loads 5 t

Send us an email inquiry if you would like more information or need a quote. Viewing is possible immediately by appointment.
