50 x Snps 4 axle flat cars for timber and wood transport for sale

20 and another 30 units of very stable flat car UIC / RIV are  for immerdiate sale!!

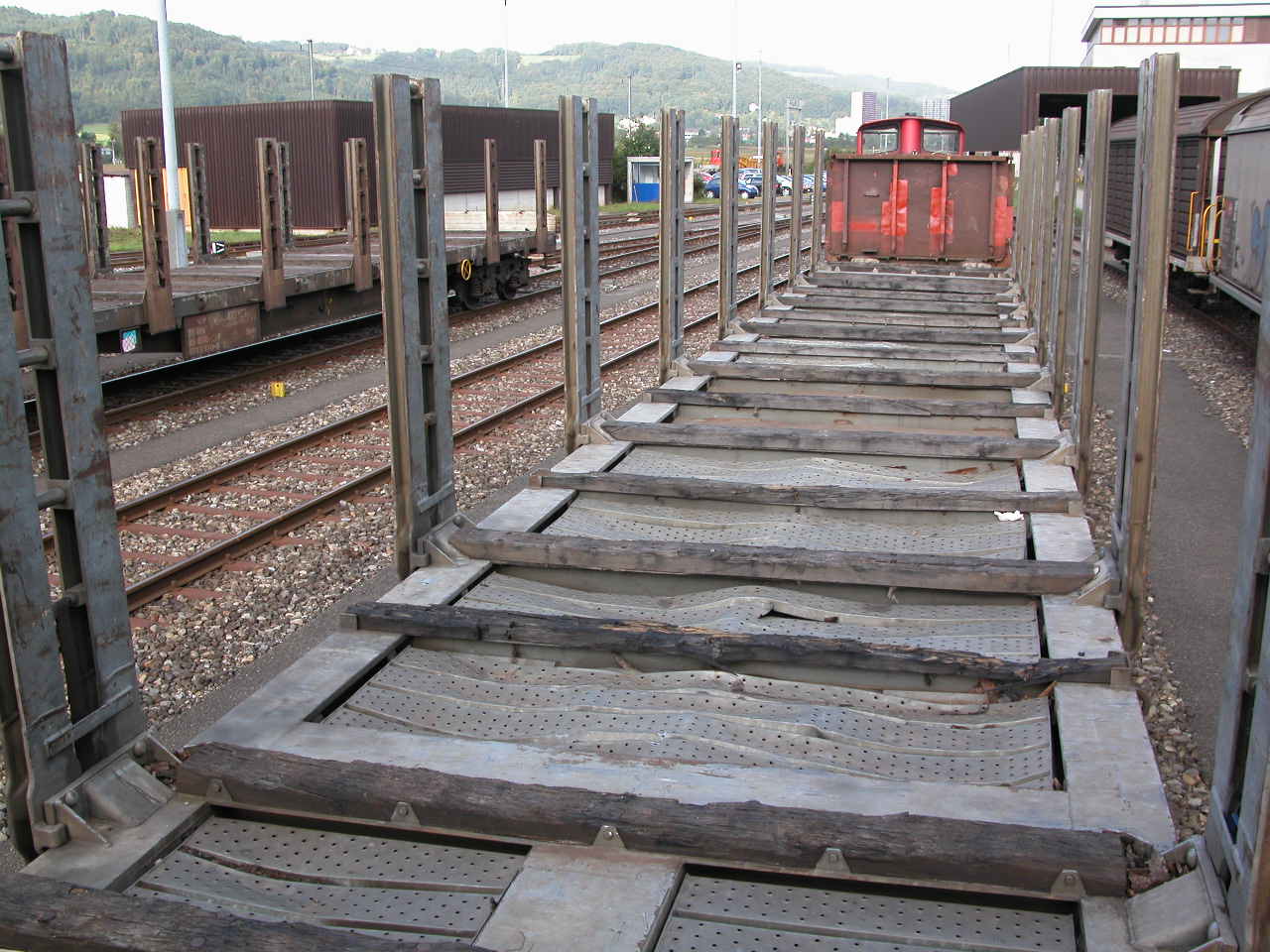

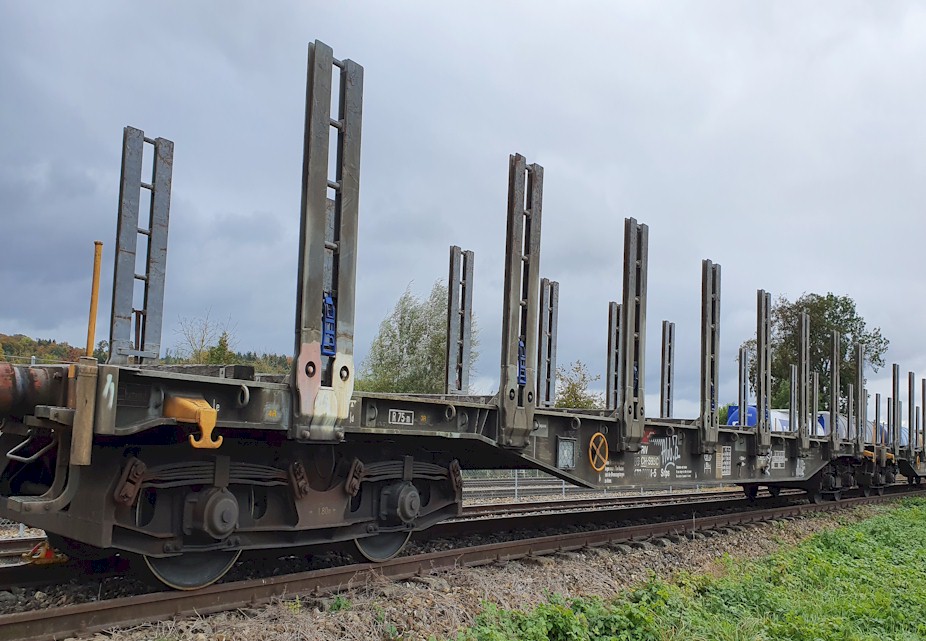

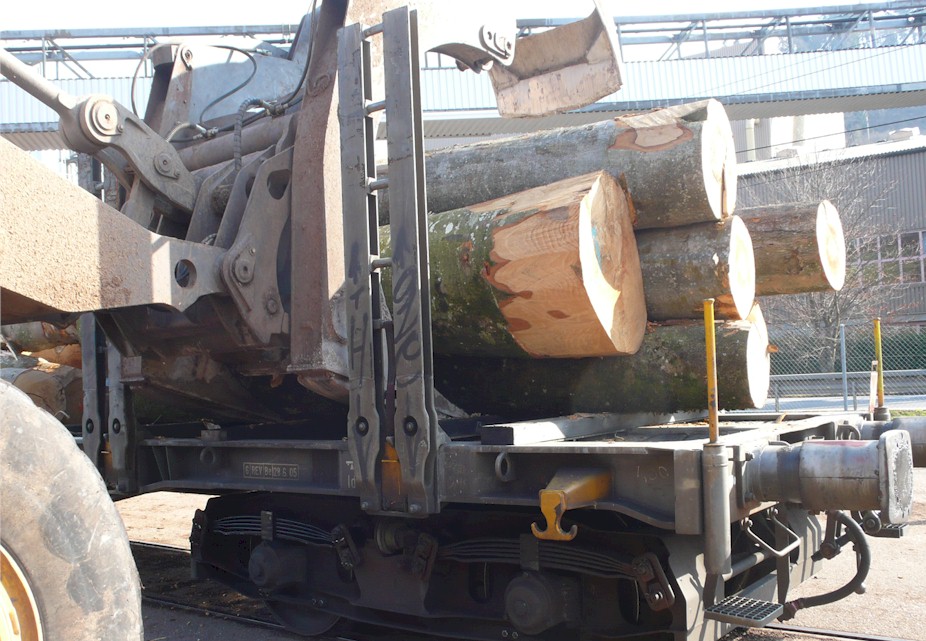

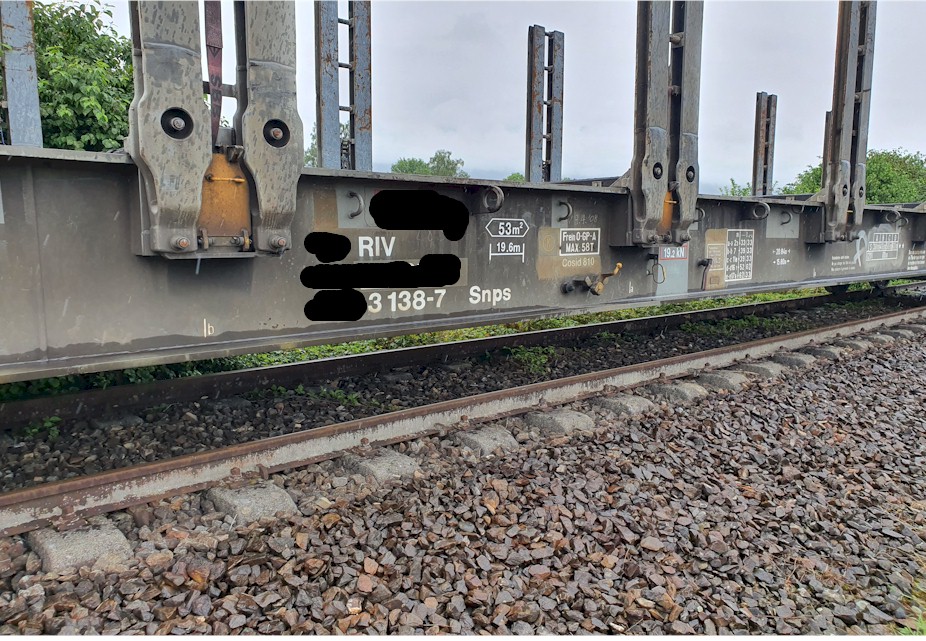

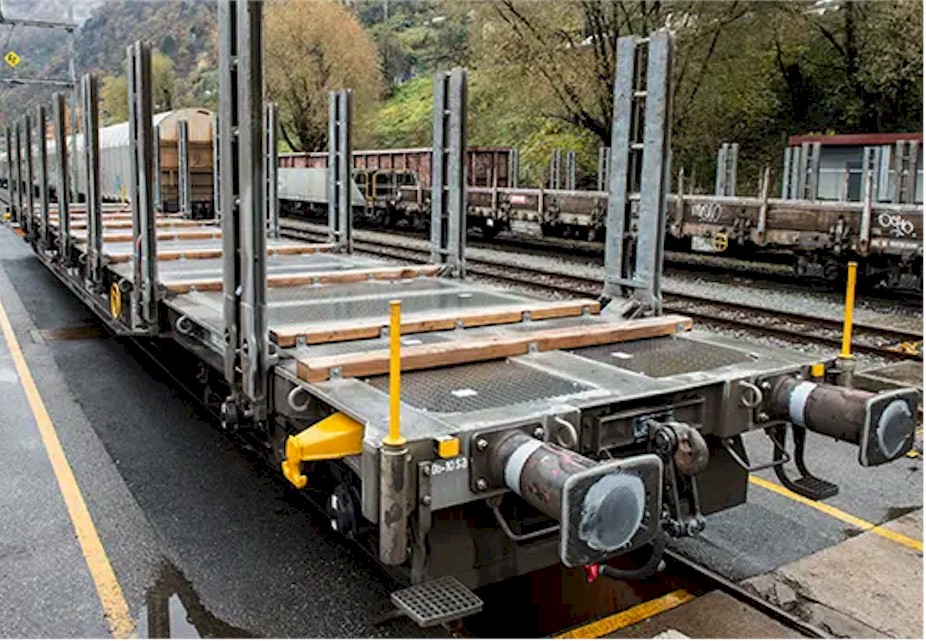

The Snps is a four-axle flat wagon with fixed stakes. It is particularly suitable for transporting robust, long loads such as logs, pipes, or reinforced concrete beams.

Data

• Minimum taxable mass 15 t (1)
• Maximum load weight 61.5–62 t
• (2) Loading length 19,600 mm
• (3) Loading width 2,740 mm
• Loading area 53 m²
• Average tare weight 26.5 t
• (4) Loading surface height above top of rail 1,280 mm
• (5) Stanchion height (above loading sills) 1,870 mm
• (6) Stanchion height (above top of rail) 3,150 mm
• Height of loading sills 80 mm
• Pivot spacing 15,800 mm
• Distance between outer axles 17,600 mm
• Length over buffers 20,840 mm
• Minimum negotiable track radius 35

Features:

• 2 x 8 fixed stakes
• 17 fixed load stops
• 2 x 9 lashing rings along the sides and
• 2 x 2 at the ends Load securing points:
• 8 ratchet straps, permanently mounted to the stakes, 8 m long, breaking strength 60 kN

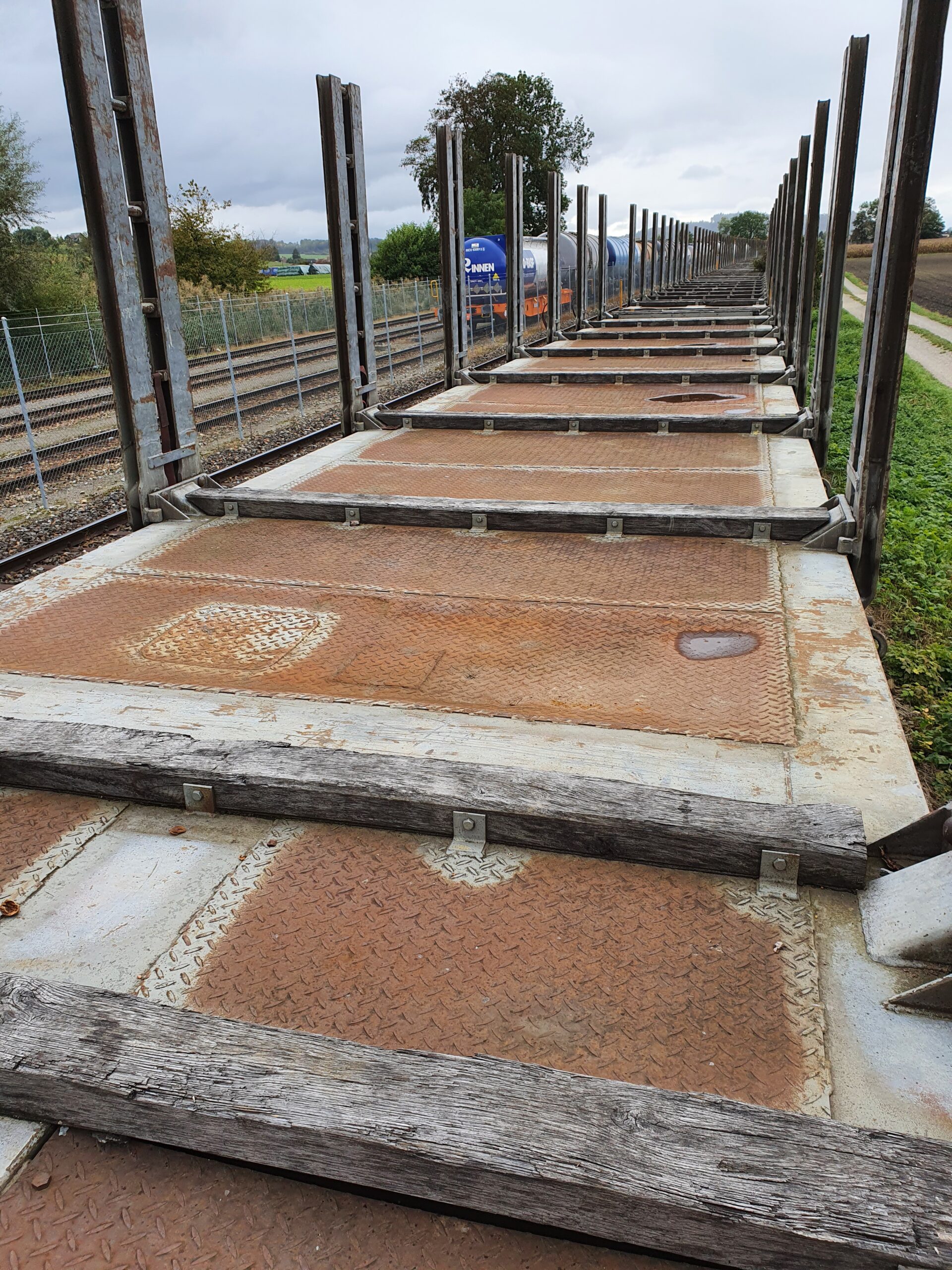

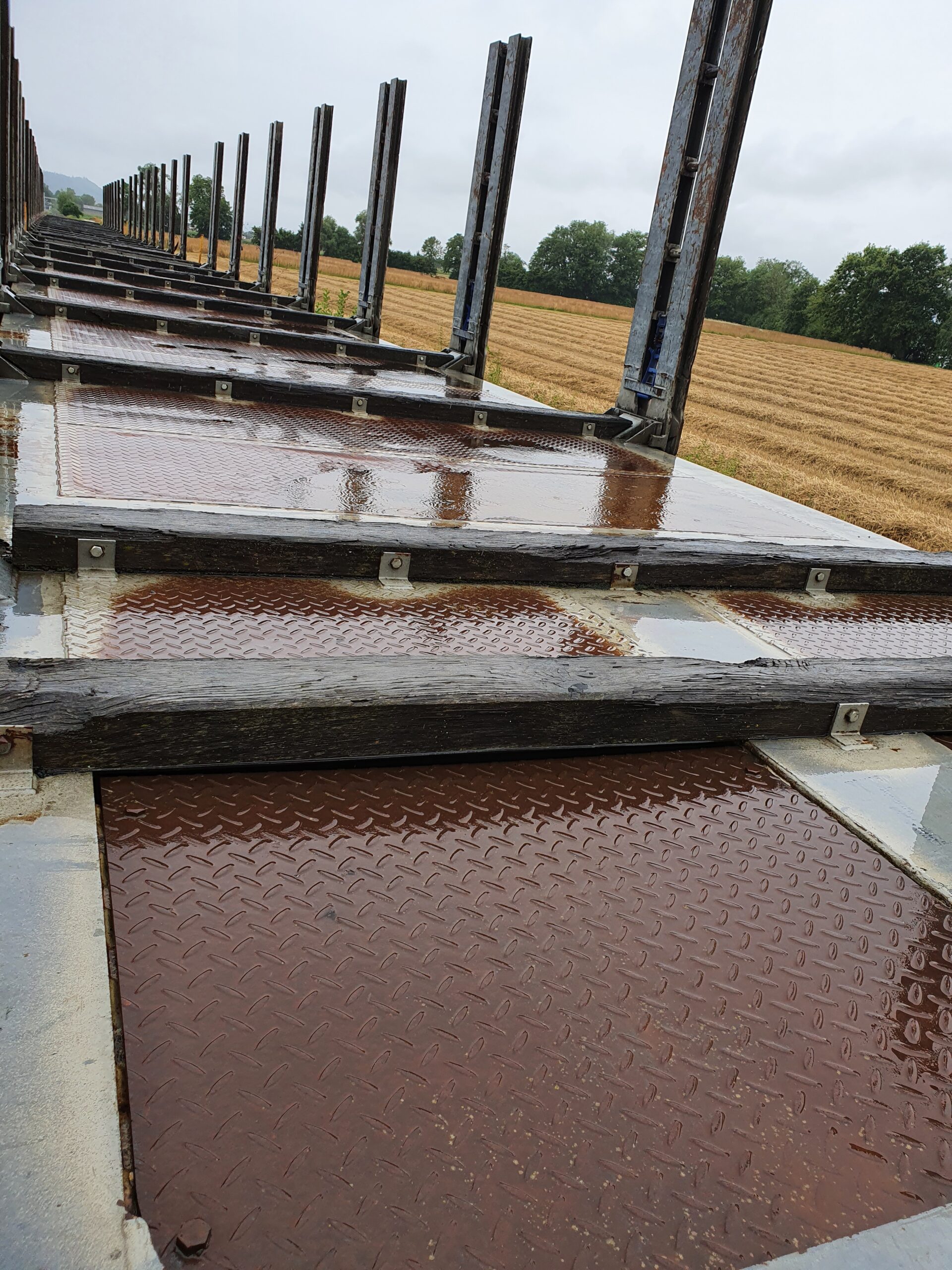

• Wagon floor made of perforated sheet metal (walkable, but not suitable for vehicle traffic)
  Send us an email inquiry if you would like more information or need a quote. A viewing can be arranged at short notice.
