BAND NEW! Zacns 4-axle tank rail cars for Sale
The wagon is a completely new one and corresponds to RID 2017 and STI 321. The wagon is suitable for international traffic.
Technical Discription
The tank is designed and built according to EN 14025, EN 12561, EN 12972 and RID 2017.
• Lenght over buffers 14940 mm
• Underframe (chassis) len 13700 +1210 mm
• Wheelbase of the wagon 9400 mm
• Distance between extreme axles 11200 mm
• Tank capacity 85 m3
• Useful capacity according RID aprox. 85 m3
• Outside tank diameter 2950 mm
• the length of the tank over the thorispheric bottoms 13000 +301-20 mm
• inclination of the tank towards the middle of the wagon 1°
• test pressure (calculation) (acc. RID, la 20°C) 4 bar
• work maximum pressure 3 bar
• hidraulik test pressure 4 bar
• external pressure ,(vakuum) 0,4 bar
• explosion pressure (acc. TRT 006 si RID 2017) 8,7 bar
• calculation pressure acc. RID + 20°C
• heigh to the buffers axis,(empty wagon) 1060 +51-10 mm
• heigh to the autmatic couplers axis (empty wagon) 1040 +5/-10 mm
• running speed:
– load wagon 100 km/h
– empty wagon 120 km/h
• minimal curve radius :
– on the mainline 150 m
– on the workshop Iine,single wagon 35 m
• fery-boat
-straight mainline 3° 30
– curve Radius 150m,mainline 2° 30 ‚
• maneuverability on the hump Yes,acc. EN 12663-2 / 2010
• kinematik gauge G1, conform EN 15273-2
• bogie with elastic side bearer , type Y25 Ls-C with H-type frame
• bogie wheelbase 1800 mm
• wagon gauge 1435 mm
• diameter of the monoblock wheels 920 mm
• wagon regim (brake) “ S “
• autoamtic brake type KE-GP-K
• brake shoes type/configuration 1 Bgu-K-Cosid 810
• brake cylinder type 12″
• handbrake with screw with actuating crank on the gangway platform
• buffers type cat. A, stroke 105 mm, EN 15551/2009 + Al / 2011
• screw couplers 850 KN, EN 15566 + Al / 2011
• draw hook 1000 KN, EN 15566 + Al / 2011
• draw gear 1000 KN EN 15566 + Al / 2011
• wheelsets 22.5 t / axles
Location Eastern Europe / RTC workshop
Related Products
-
R188.1 Passenger coaches for sale, 1435 mm track
For sale are this units: The passenger coaches R188.1 are air-conditioned open seating coaches with 4 compartments and a total of 64 seats. The vehicles were […]
-
Zags 117 m3 – LPG tank wagon, new
LPG WAGON Zags Wagon Type (UIC) : Zags Tank Code : P27BH Tank Material : P460NL1 Loading/Unloading : From bottom both sides (left and right) Track […]
-

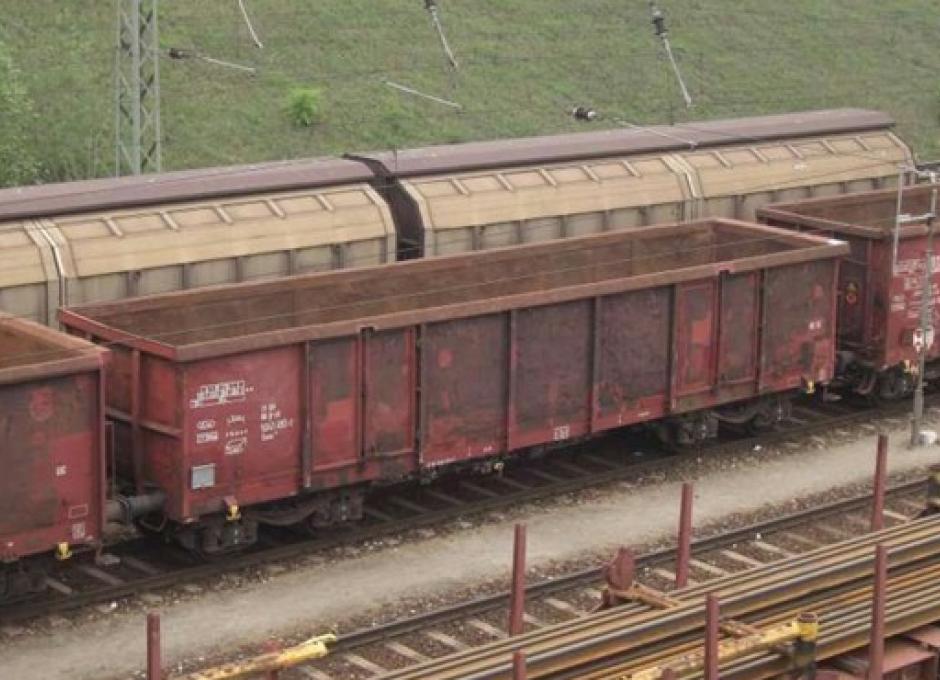

50 x Eaos box car for sale – UIC / RIV
