R284.x Trailer Coach, used multi rack conversion available!

For sale

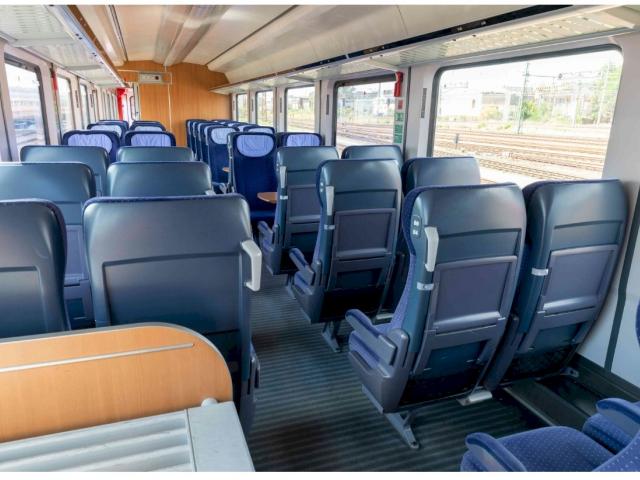

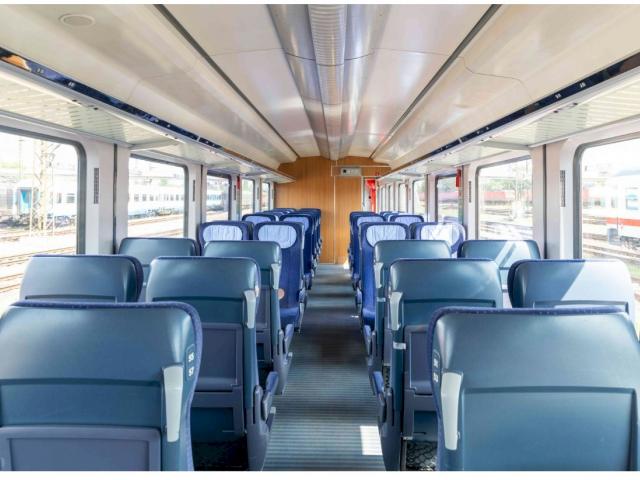

The interior is divided into two open saloons.

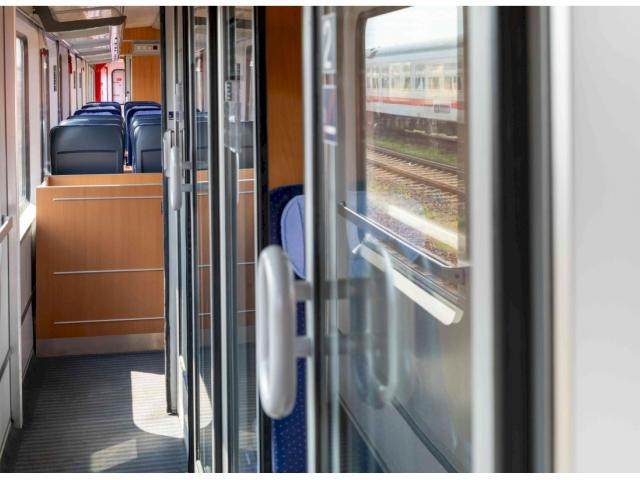

The two compartments are separated by a glass partition without a door. A row of seats is formed by 2+2 individual seats.

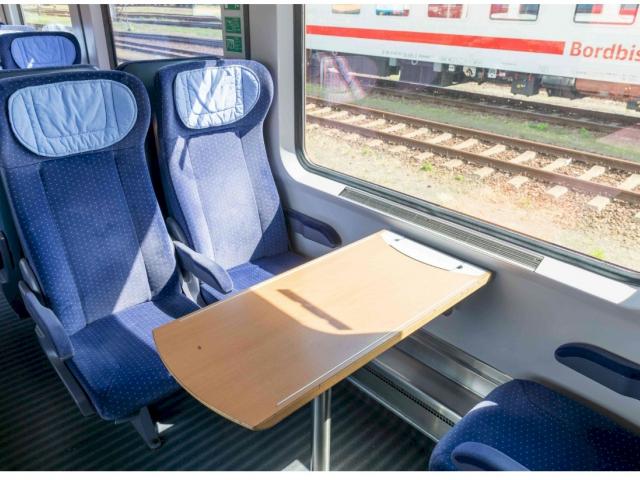

Half of the seats in each open saloon are arranged towards carriage end 1 or carriage end 2, resulting in an open compartment with a table in the centre.
There are luggage racks at the ends of the open-plan compartments, as well as lengthways above the windows.

Year of construction 1992-1993
◼ Vmax = 140 km/h
◼ Without air condition (Solution for retrofitting is available)
◼ Single-voltage power system (1,000V)
◼ 139 seats 2nd class (R750x)
◼ 123 seats 1st and 2nd class (R755x)
◼ Boarding height with extended folding step 1150 mm

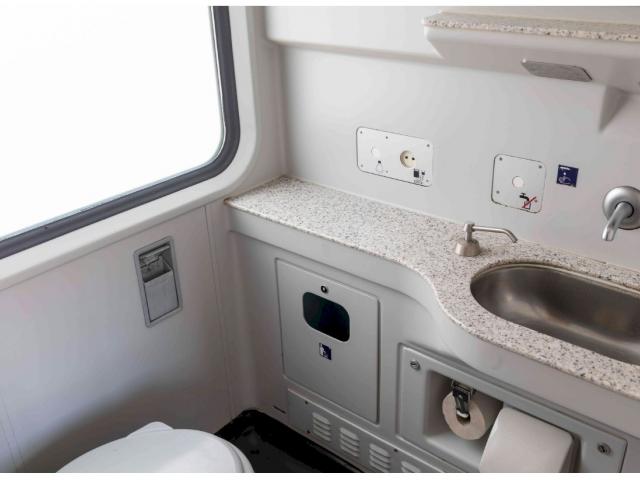

◼ Vacuum toilet system

◼ Conversion available for:
Multi -voltage power supply capability
Change track gauge to 1000, 1067 or 1667 mm!!

Specs:

Weight 45 t
Length over buffers 26400 mm
Length 26100 mm
Width 2825 mm
Top of rail height 4050 mm
Bogie type Minden-Deutz 52.3
Bogie centres 19 m
Wheelbase 2.5 m
Brake design KE-GPR-Mg (D) [ep] [NBÜ]
