40 Eaos box cars, new box and steel floor, UIC RIV, general revision valid for 6 years

Type: Eaos wagon (photos and drawing attached)

Quantity: 40 wagons, which have totally new box, new doors, new pillars, new 6mm thick metal floor, partially with new underframes

Description of the boxes:

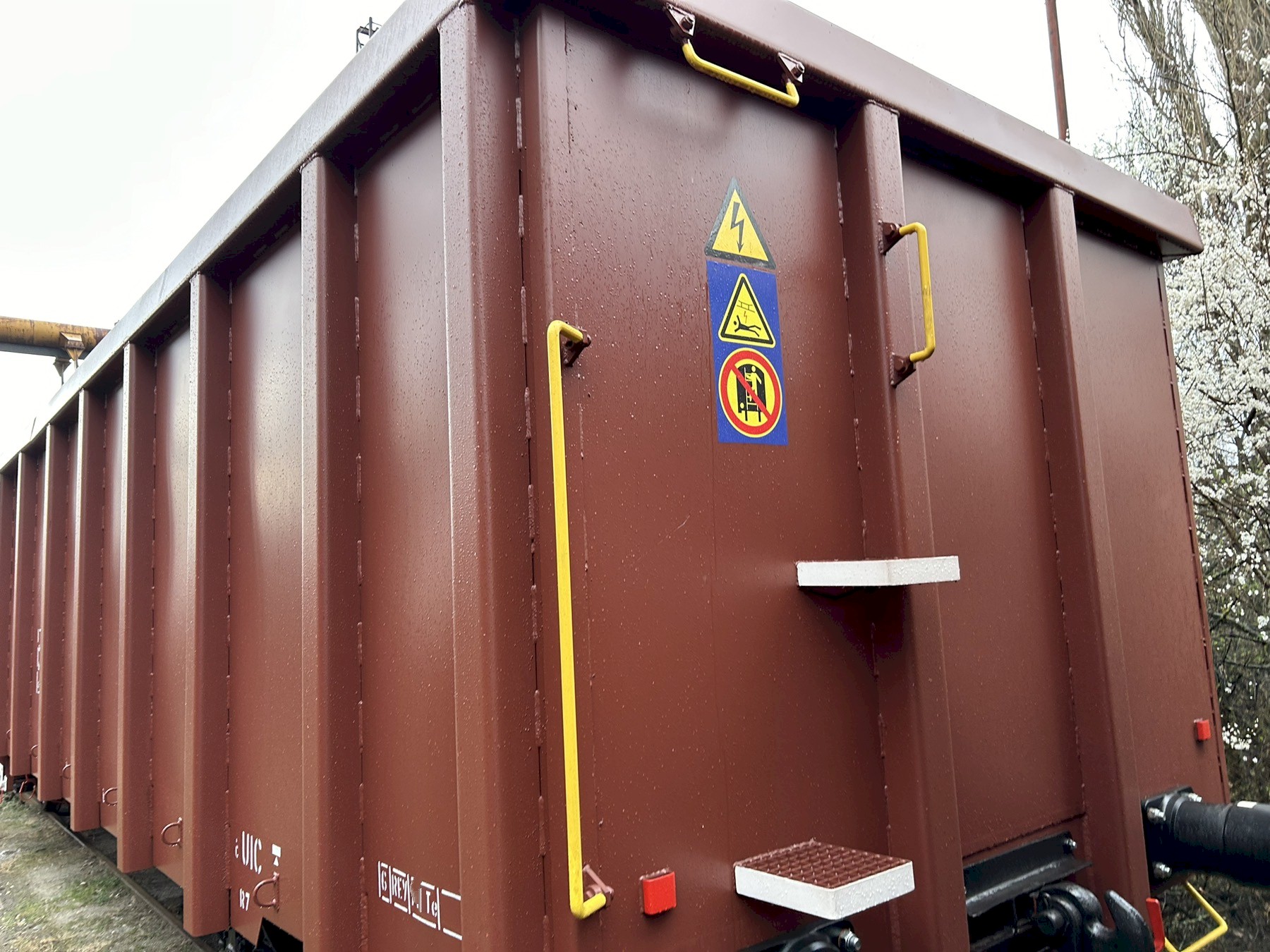

• New 4 mm side and front walls- New reinforced steel columns, the width of which is 140mm / 6mm
• New reinforced steel upper frame width – 200mm / 6mm
• New doors 4mm thick (2 pieces)

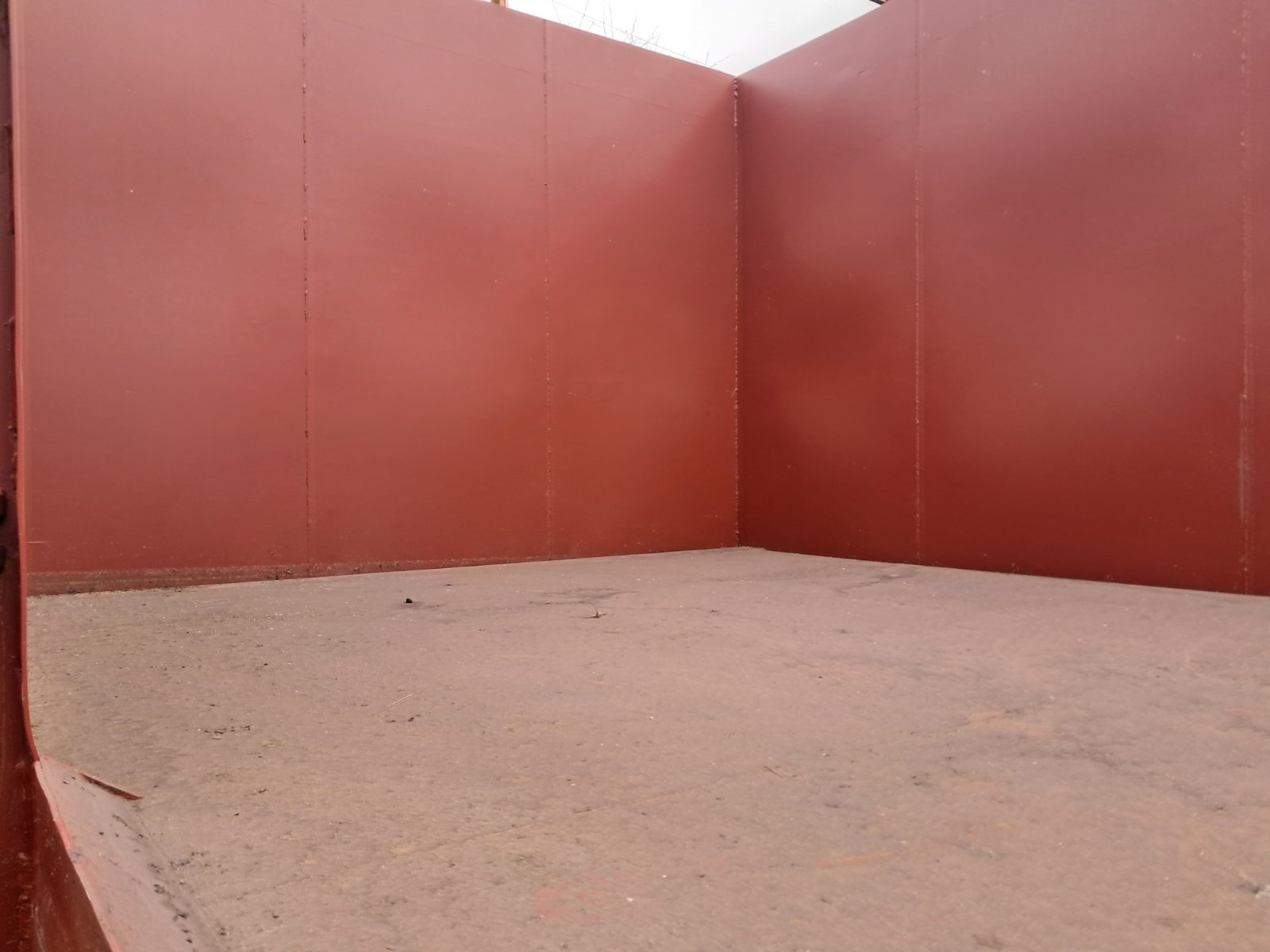

• New metal floor 6 mm thickness
• Gauge: 1,435 mm
• Wagon length between the buffers: 14,040 mm
• Maximum load: approx. 59 t
• Wagon width: 2,800 mm
• Useful floor space: 35.84 m2
• Tare /net weight/: approx. 21 t
• Axle load: 20 t

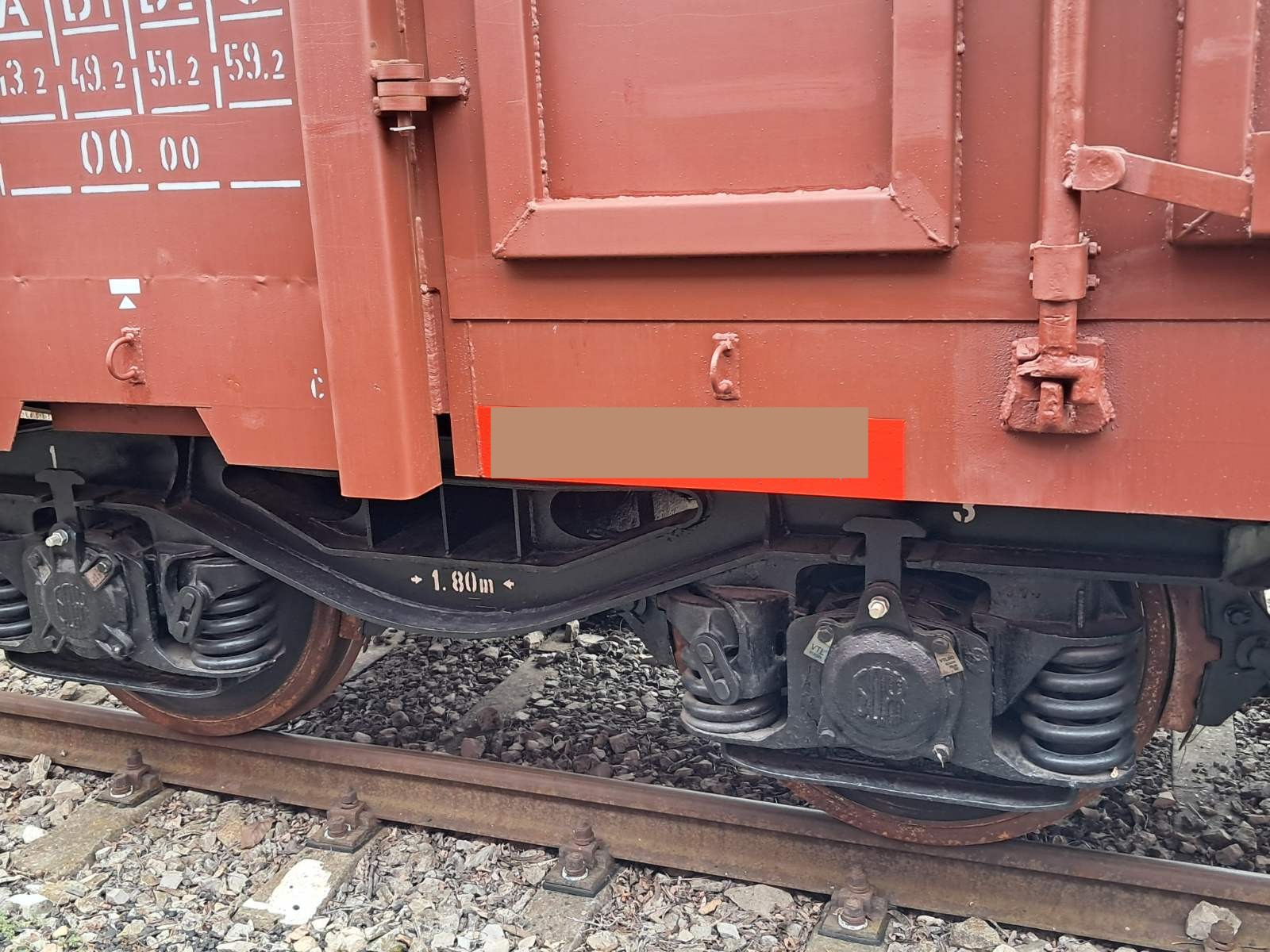

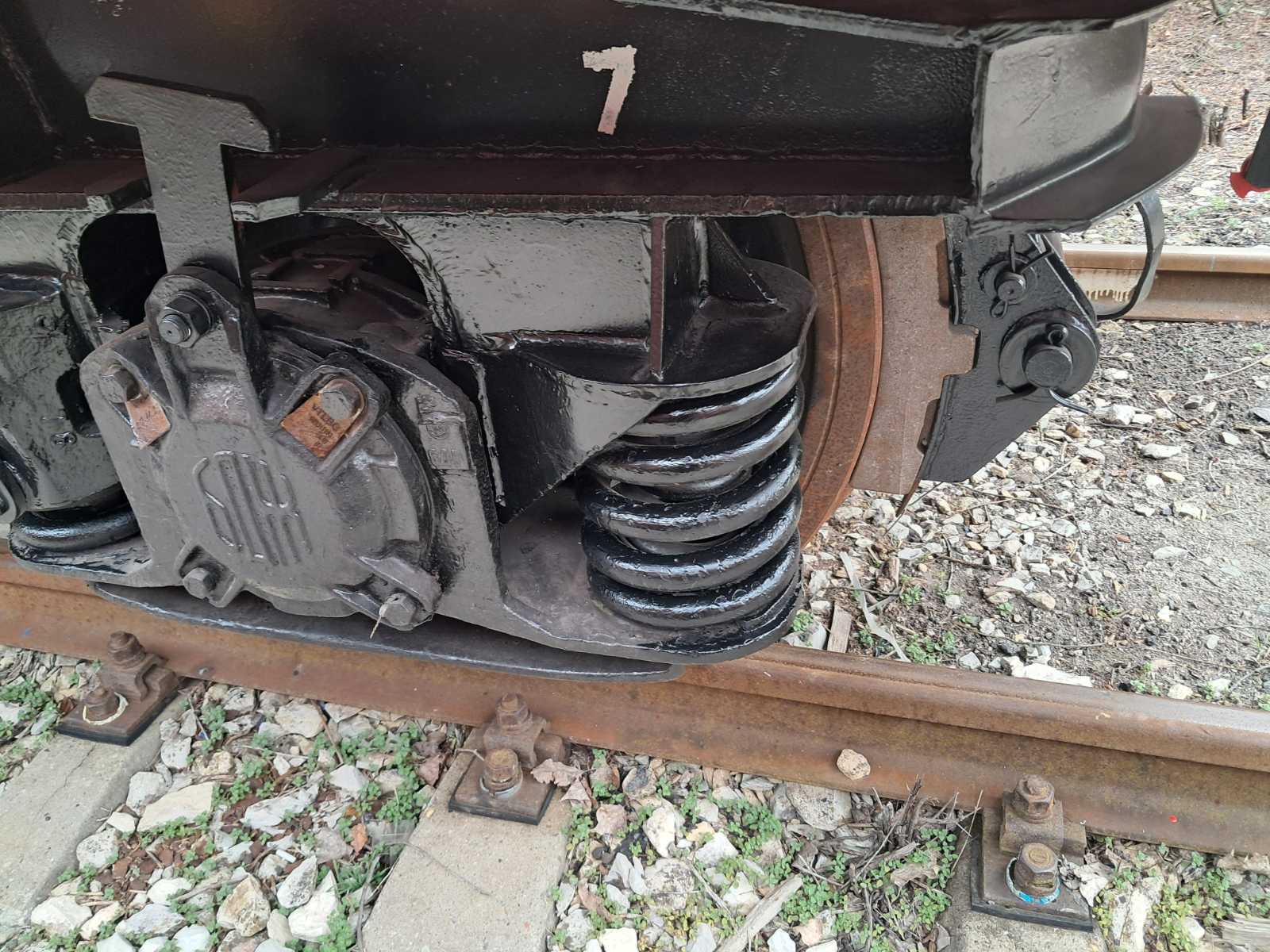

• Bogies: Y25 Cs with revision
• Springs: with new general revision
• Brake type: Knorr KE-GP 16″
• Wheels: Monoblock R7 with new general revision (original type R7 920mm); with a minimum diameter of 880mm.
• Bearing housing and bearings: With revision – French blue Mobile XHP 222 type bearing grease – Exxon Mobil certified. General revisioned bearings;

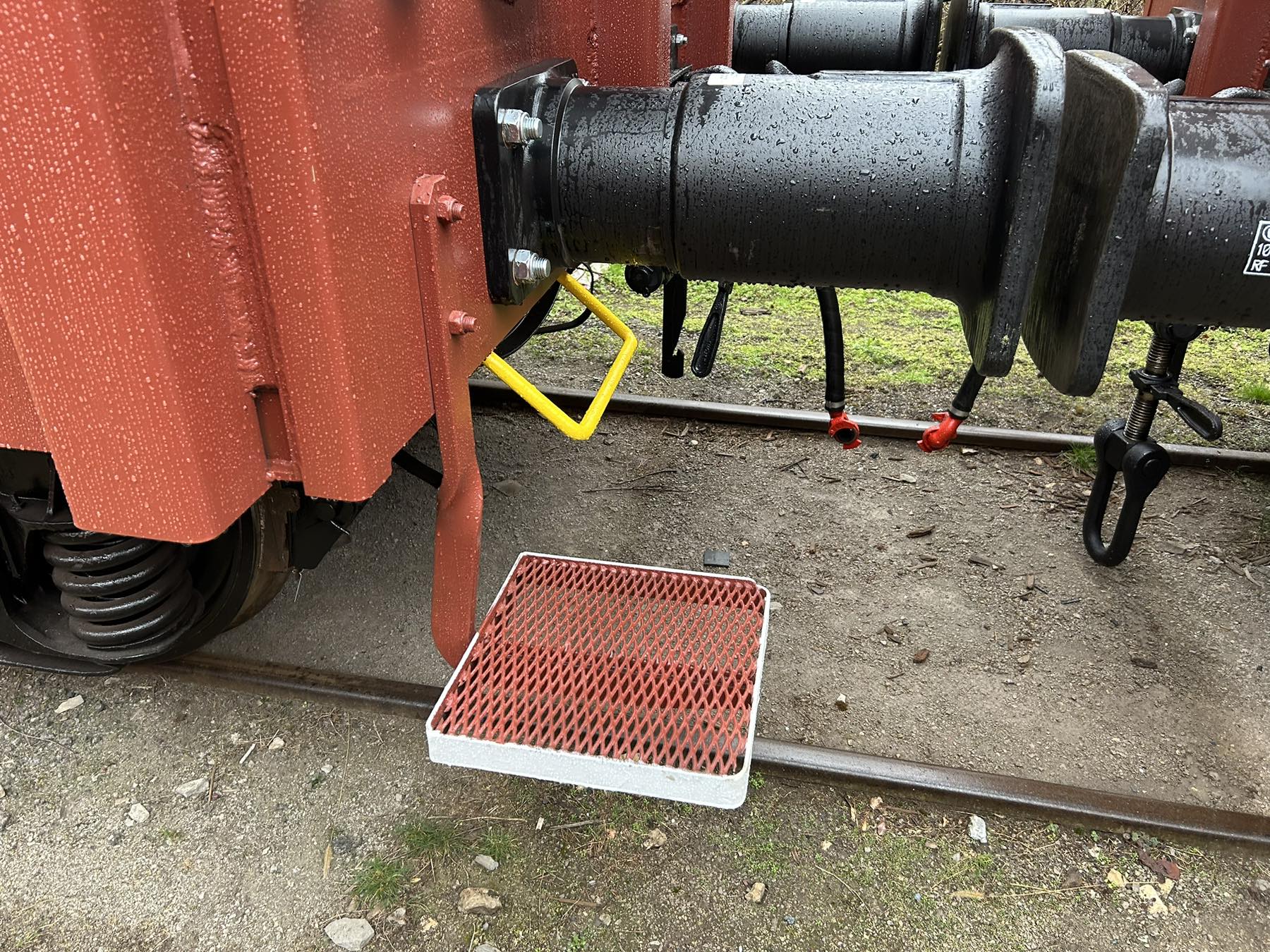

• Buffers: Type 105A with new inserts with manufacturer ALSTROM certificate
• Screw coupling: With new revision
• Brake pads: Cast iron or LL composite according to the choose of the Buyer
• Air tank: revisioned 125l

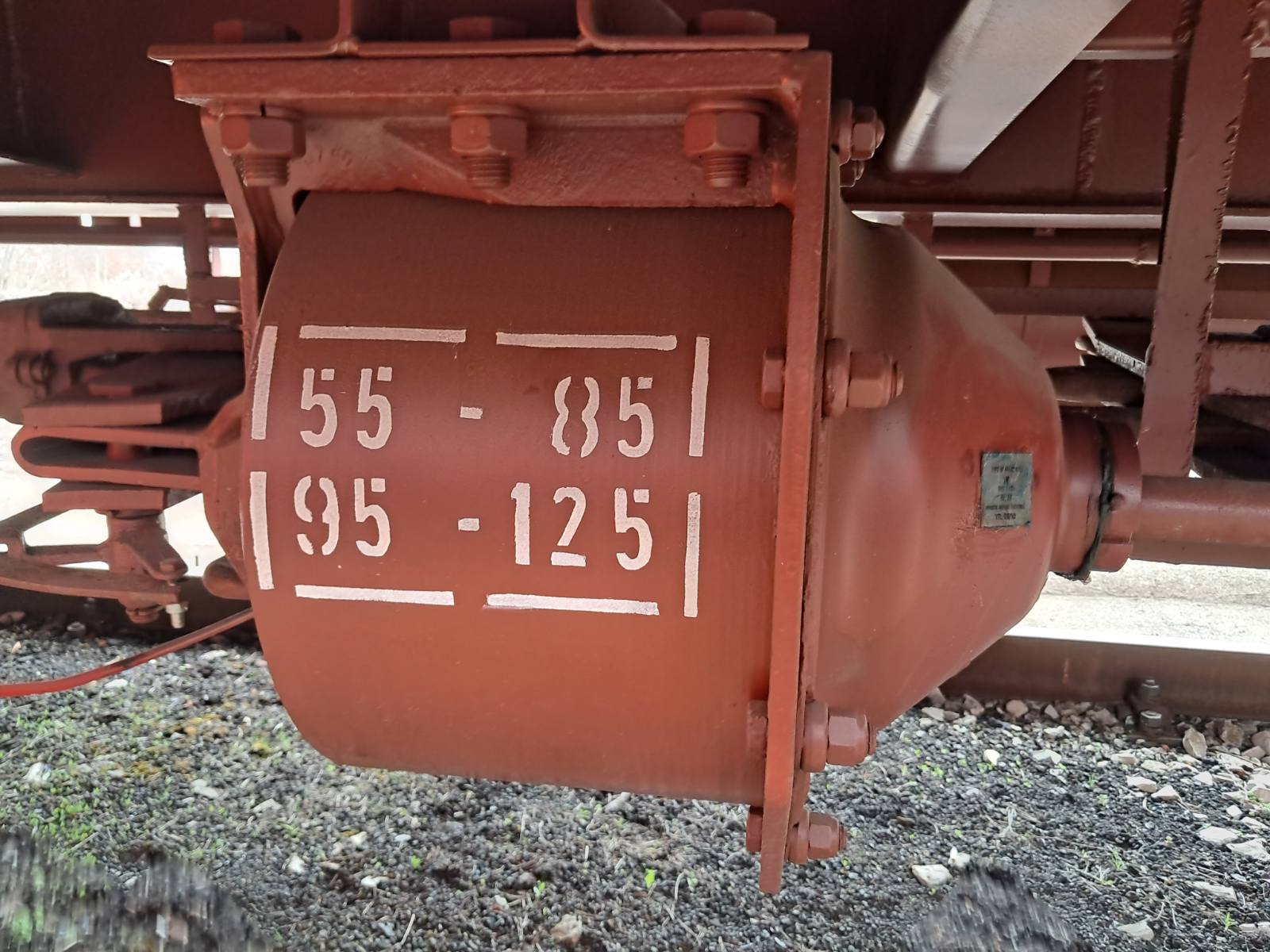

• Brake cylinder 16″: With new revision, new sealing ring, manufacturer’s certificate
• SAB regulator: With a new revision
• Ackerman shifter: New with manufacturer’s certificate
• Distributor valve: KE 1 c-SL; tested with new repair elements in a specialised workshop authorized by KNORR and by the BDZ.

Technical condition: the wagons have RIV general revision valid for 6 years

Delivery schedule has to be negotiated

If you are interested in these vehicles, please send a message to RTC Europe, including the standard company details; we will get back to you as soon as possible with an offer.
